A rework/remix of the monome norns shield - a open-source/DIY shield for Raspberry Pi boards (Pi3B+ and Pi4B), providing hardware compatibility with the norns ecosystem. Originally design by monome. Remixed in spring 2023 by denki-oto.
This is the same norns shield functionality in a different form factor and a few extras.
Please be very aware that shieldXL is not supported by monome in any way. Do not email monome asking for build help, debugging or repairs.
specifications
audio codec: CS4270
audio jacks: 6.5mm, 2 in and 2 out, line level
OLED: NHD-2.7-12864WDW3-M (w/ MOLEX connector)
3x mech switches (Choc V1 or Cherry MX are supported)
3x rotary encoders
hardware MIDI in/out (TRS)
TRS MIDI out is switchable between Type-A and Type-B
TRS MIDI in is auto-sensing (Type-A or Type-B)
uses the same disk image as the 210330 norns shield
fully compatible with norns software

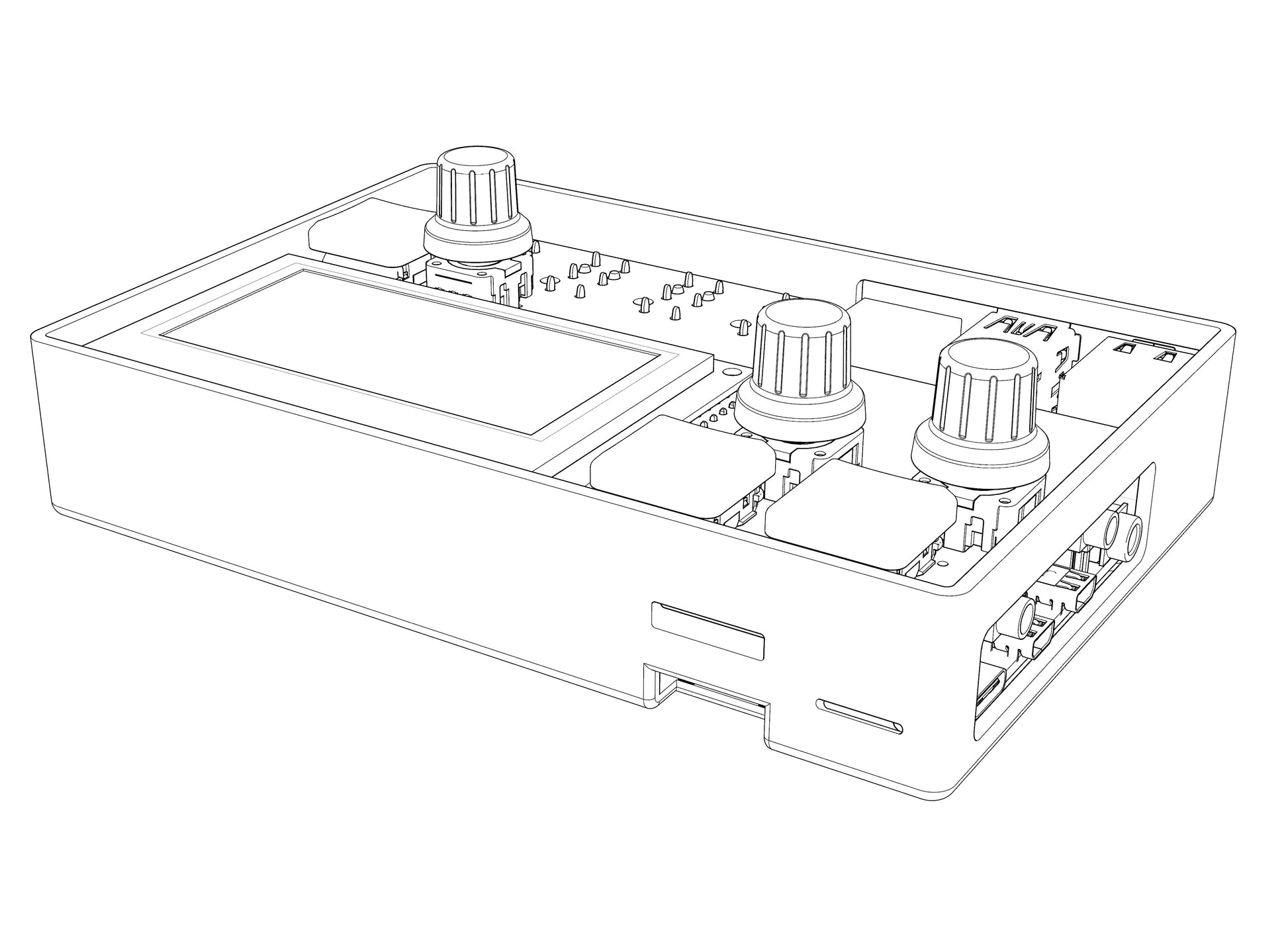

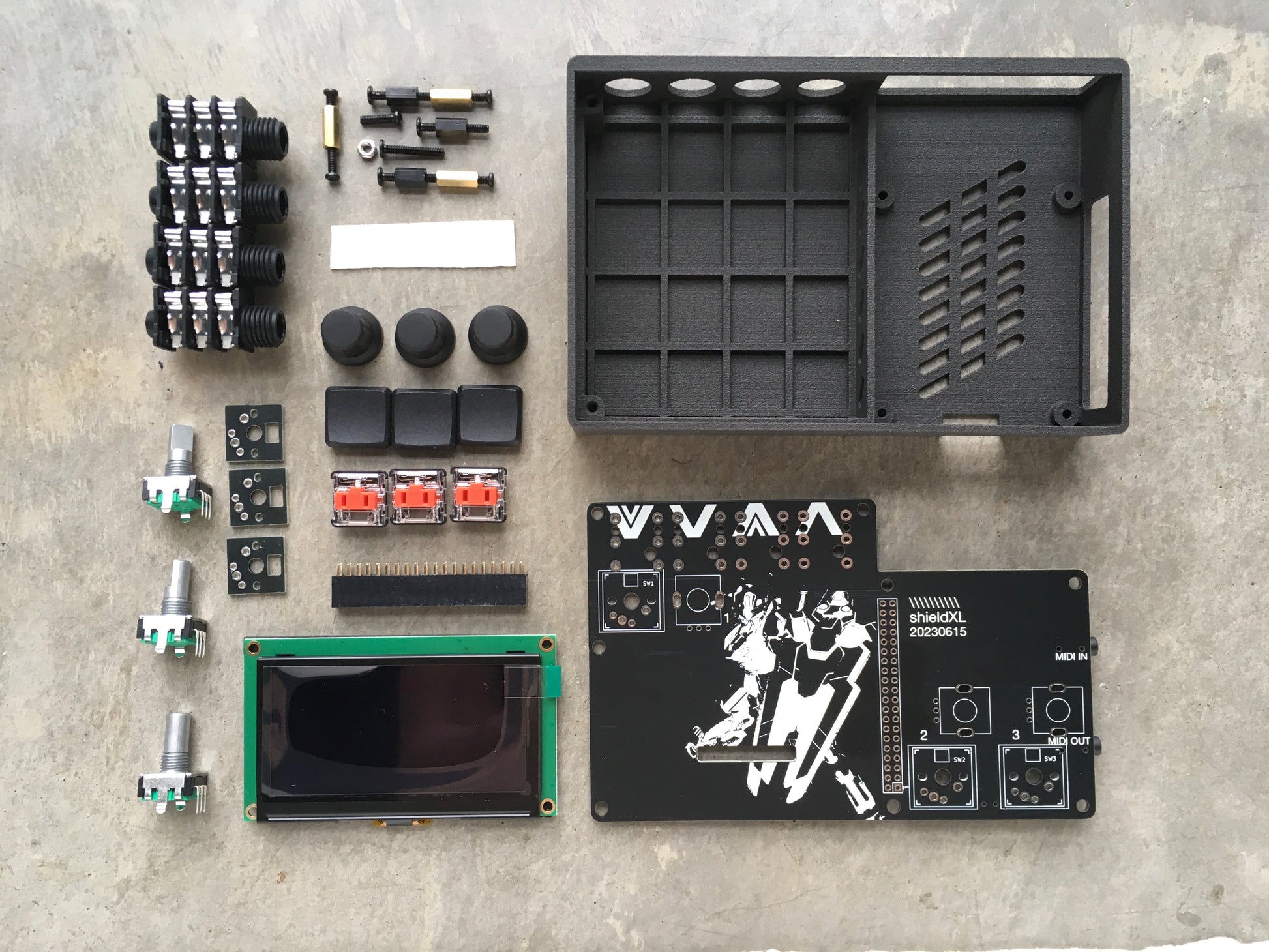

base kit includes

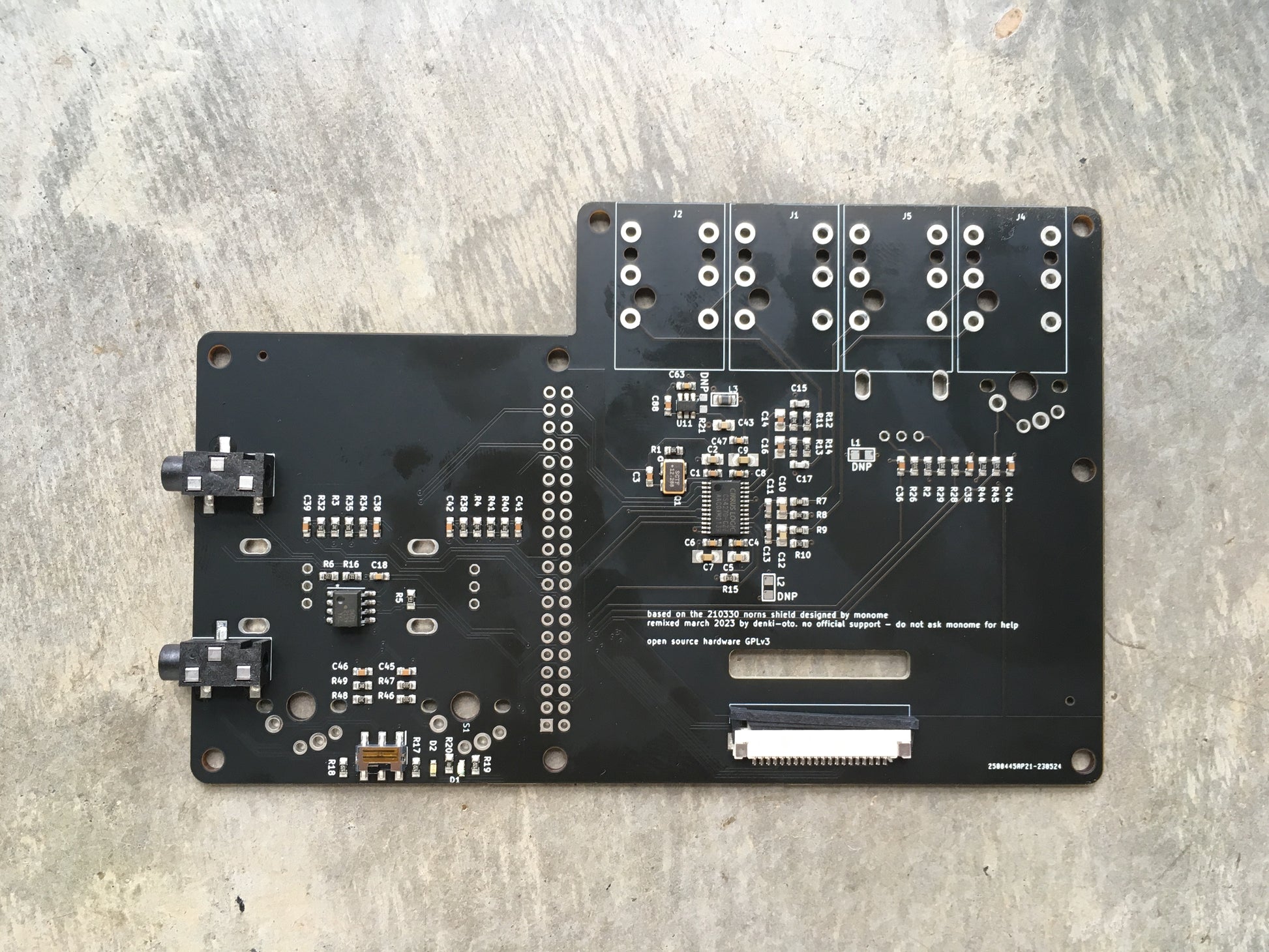

PCB with SMD parts already assembled
display spacer
keyswitch spacer pcbs (optional for chocs)
Thru-hole soldering is required
Kit Options
(base kit includes includes pi header, display spacer, choc switch spacers)
shieldXL PCB base kit
shieldXL PCB w/ All Components - No Case (White OLED Display/Audio Jacks/Encoders/Choc Red Switches/MBK Keycaps - Black/Knobs/Standoffs and Screws).

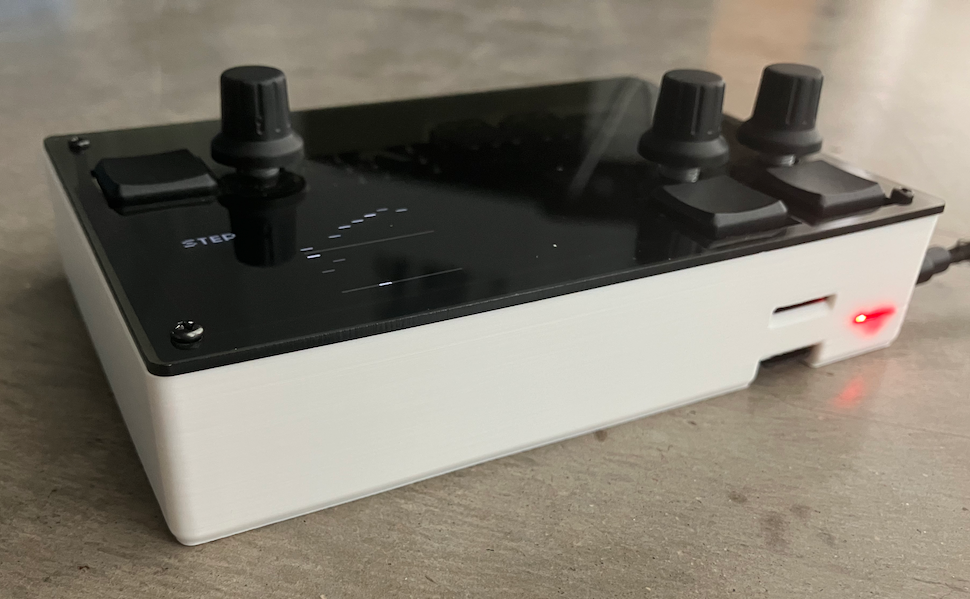

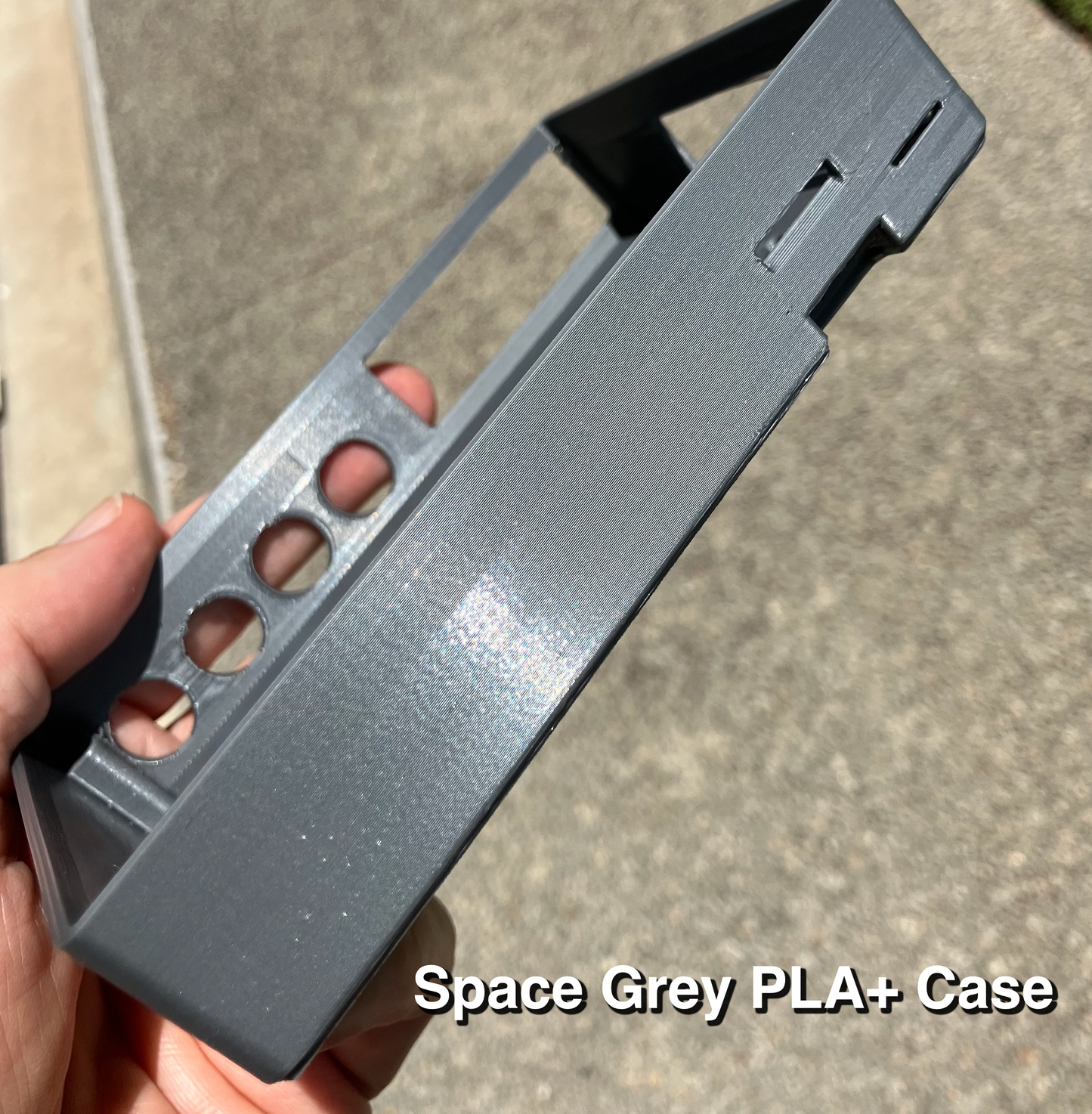

shieldXL PCB w/ All Components + Basic PLA Case + Clear or Smoke Top Panel

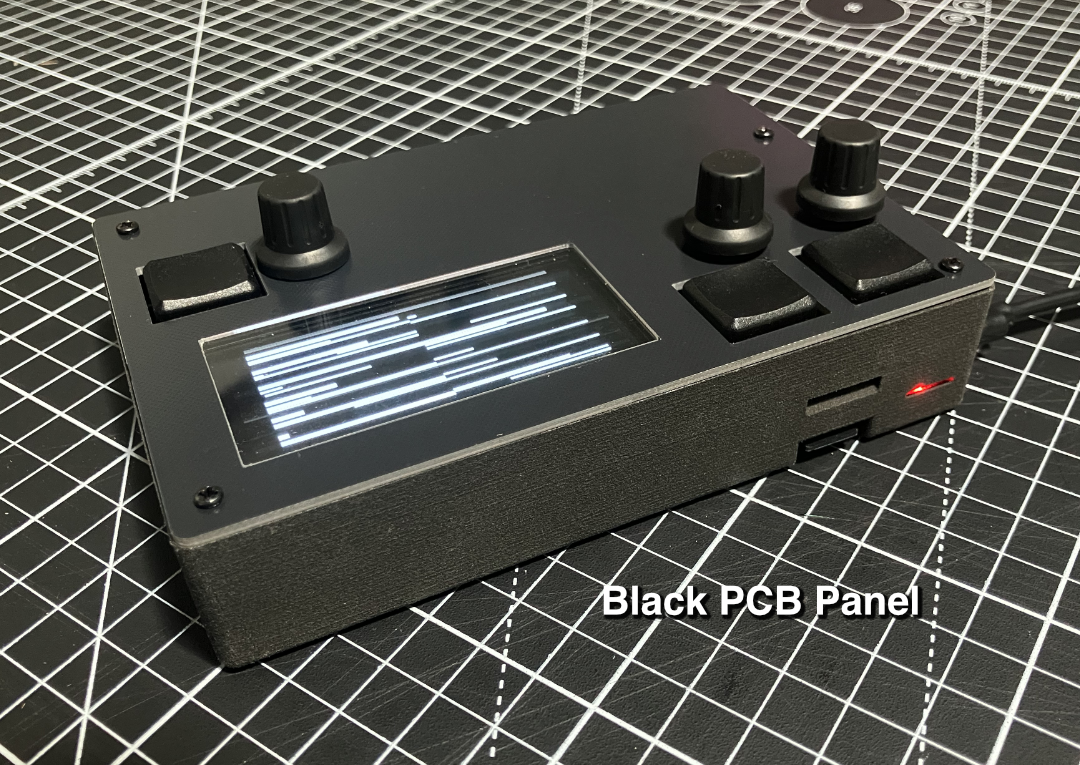

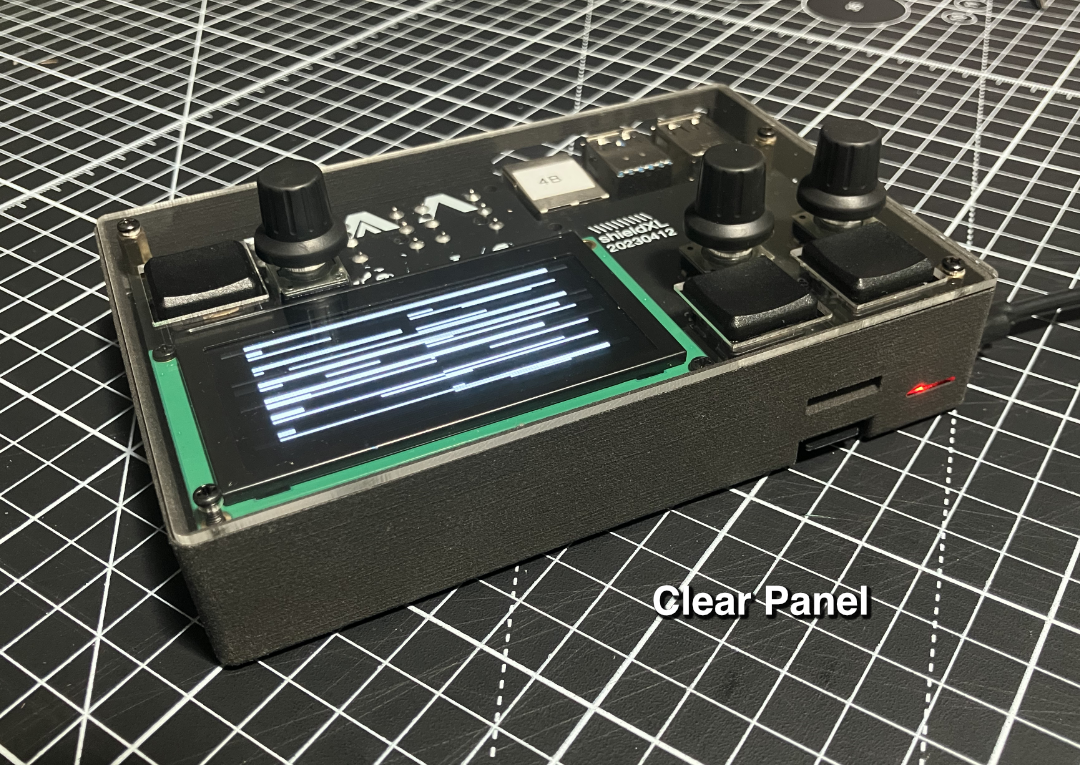

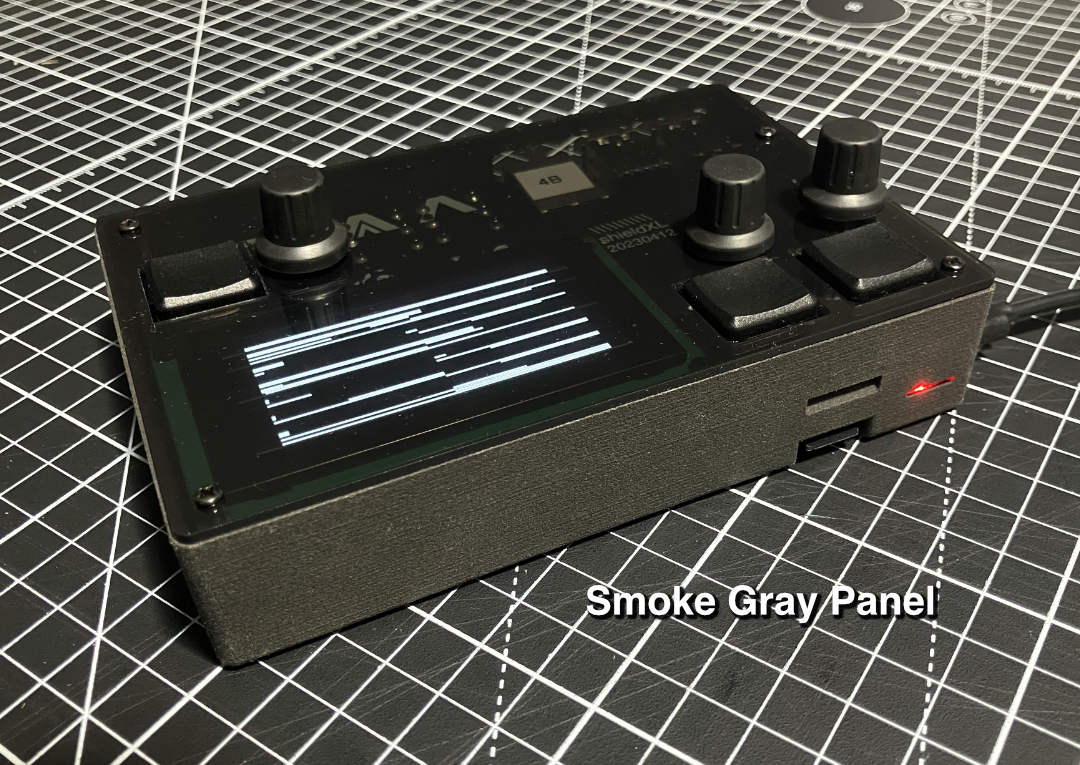

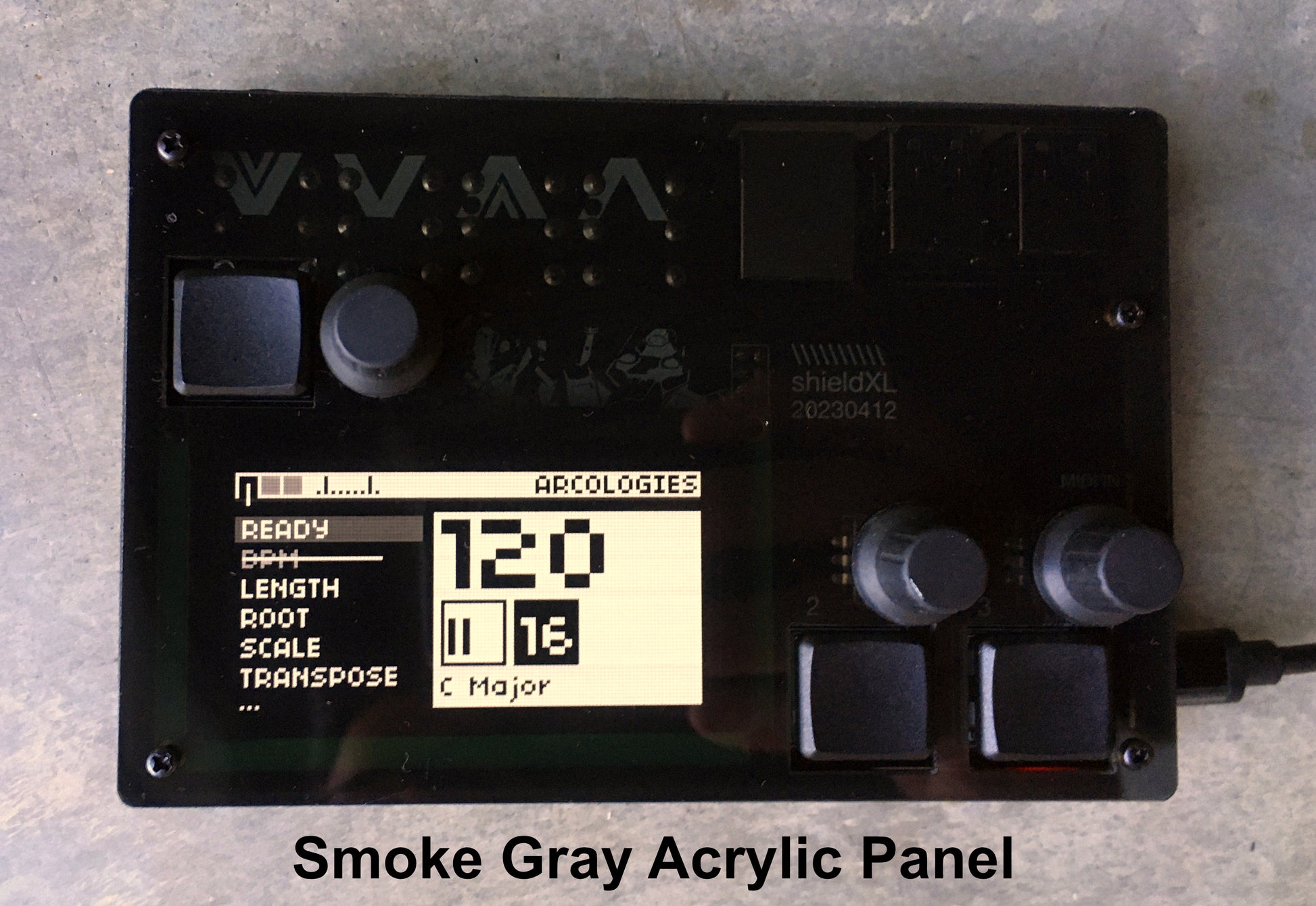

Alternate Top panels for the case (Clear, Smoke or PCB) are available as optional items below.
Raspberry Pi Not Included. You will also need a micro SD card and a proper power supply
GitHub: https://github.com/okyeron/shieldXL
versions
shieldXL 20230423: This rework/remix is based on the 210330 version of the norns shield. It uses the same disk image as the 210330 shield with the cs4270 codec.
shieldXL 20230615: Same as above with minor silkscreen changes.
shieldXL 20251025: Minor fixes to copper spacing around standoffs.
